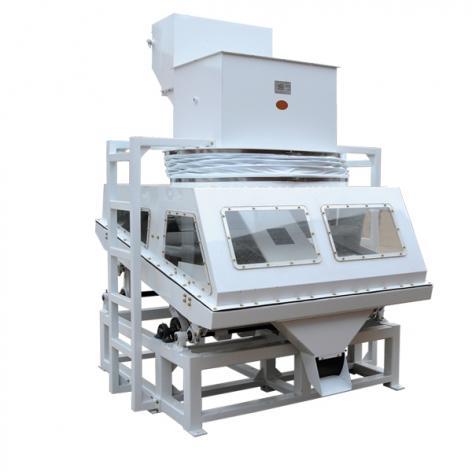

Suction type gravity germ extraction machine usage:
1.Used in semidry method and dry method corn processing project. It is the separation equipment for corn germ, corn skin and light impurities to improve corn processing auxiliary products value.
2. It is the core equipment of corn germ extraction in alcohol enterprises, starch enterprises, starch sugar enterprises and feed enterprises.
Working principle and features:
It utilizes the gravity between corn germ and corn granules and the different suspension speed, with the help of the airflow effect upward through the material intervals, urges the germ granules to realize size grading. Under the effect of germ extraction sieve plate which has inclined alternating motion, corn granules move towards the discharging end. Under the self-supporting effect, the upper-floating germ flows to the germ discharging port so as to separate the germ from the corn grits. This machine can help us produce germs with higher integrity and purity degree combining with our DTP kneading type germ separating machine.
The vibrating body is made of qualified aluminum alloy material, which has light weight, stable and reliable performance and long service life.
Technical parameter:
| Model | Yield（T/H） | Power（KW） | Air Volume(m3/h) | Weight（KG） | Outline Dimension（MM） |
| YMTPX-80 | 1.5-2.5 | 0.75 | 3200-3400 | 350 | 1380x970x1997 |
| YMTPX-100 | 1.5-3 | 0.75 | 3800-4100 | 380 | 1570x1150x1800 |
| YMTPX-125 | 2.0-4.0 | 1.1 | 4800-5100 | 480 | 1615×1375×2065 |
| YMTPX-168 | 4.0-6.0 | 1.5 | 7500-7800 | 550 | 1826×1550×2365 |
