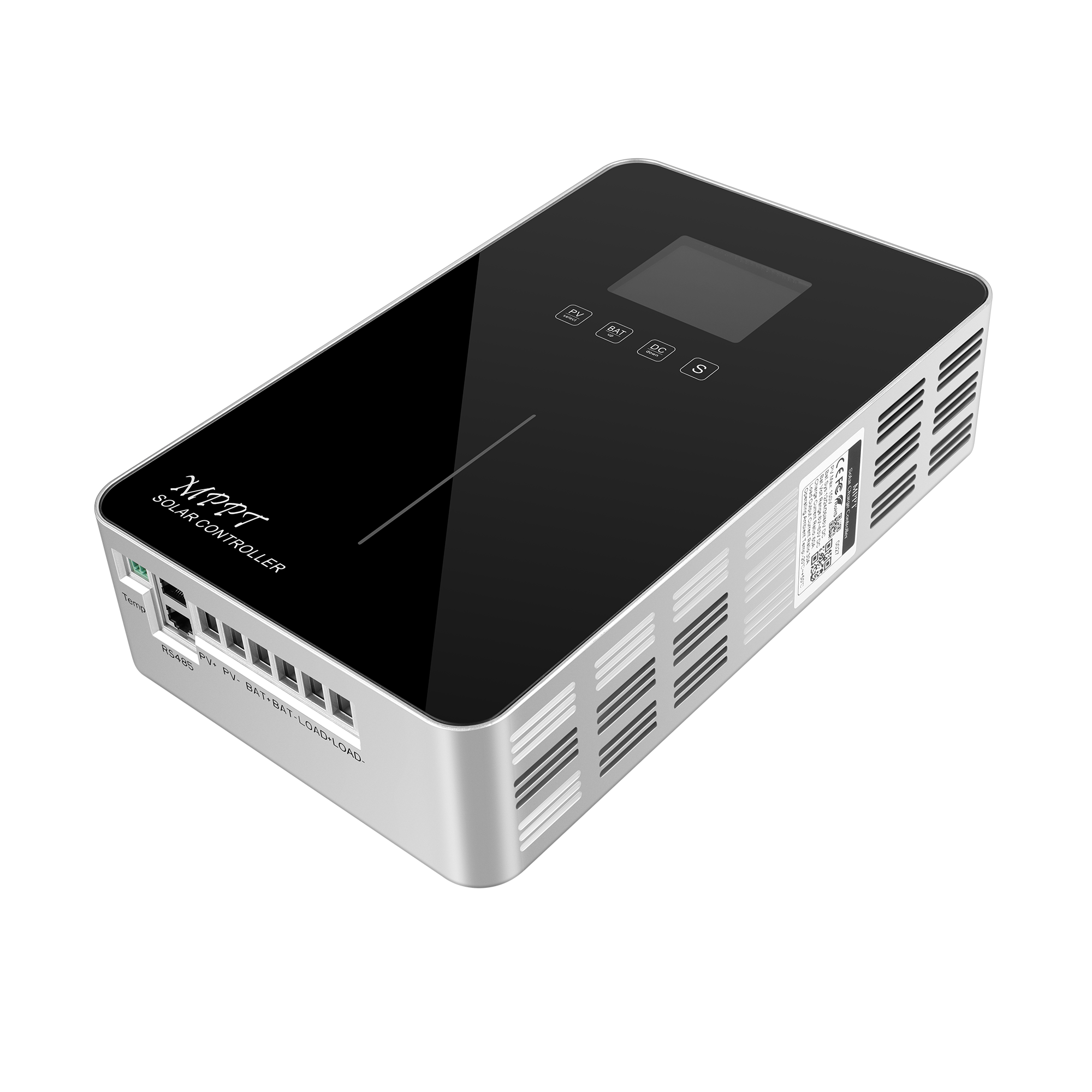

| RUNNER Series | RUNNER -50A | RUNNER -60A | ||
| Product Category |
Controller properties | MPPT (Maximum power point tracking) | ||
| MPPT efficiency | ≥99.5% | |||
| Standby power | 0.5W~1.2W | |||
| System voltage | 12V/24V/36V/48V auto work | |||
| Heat-Dissipating method | Fan-cooling | |||
| Input Characteristics |
Max.PV input voltage(Voc) | DC150V | ||
| Start charge voltage point | Battery voltage + 3V | |||
| Low input voltage protection point | Battery voltage + 2V | |||
| PV rated power | 12V system | 650W | 780W | |
| 24V system | 1300W | 1560W | ||
| 36V system | 1950W | 2340W | ||
| 48V system | 2600W | 3120W | ||
| Charge Characteristics |
Battery types (Default Gel battery) | Gel battery, Sealed lead-acid battery, Flooded battery, User-defined | ||
| Charge rated current | 50A | 60A | ||
| Charge method | 3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge) | |||
| LOAD Characteristics |
Load voltage | Same as battery voltage | ||
| Load rated current | 30A | |||
| Load control mode | On, Off , PV voltage control, Dual-time control, PV + Time control | |||
| Low voltage protection | The default protection point is 10.5V, and it is restored to 11V (can be set) | |||
| Setup method | PC software / Mobile APP / controller display | |||
| Display & Communication |
Display | High-definition LCD segment code backlight display | ||
| Dry contact access voltage | 5V ~ 12V | |||

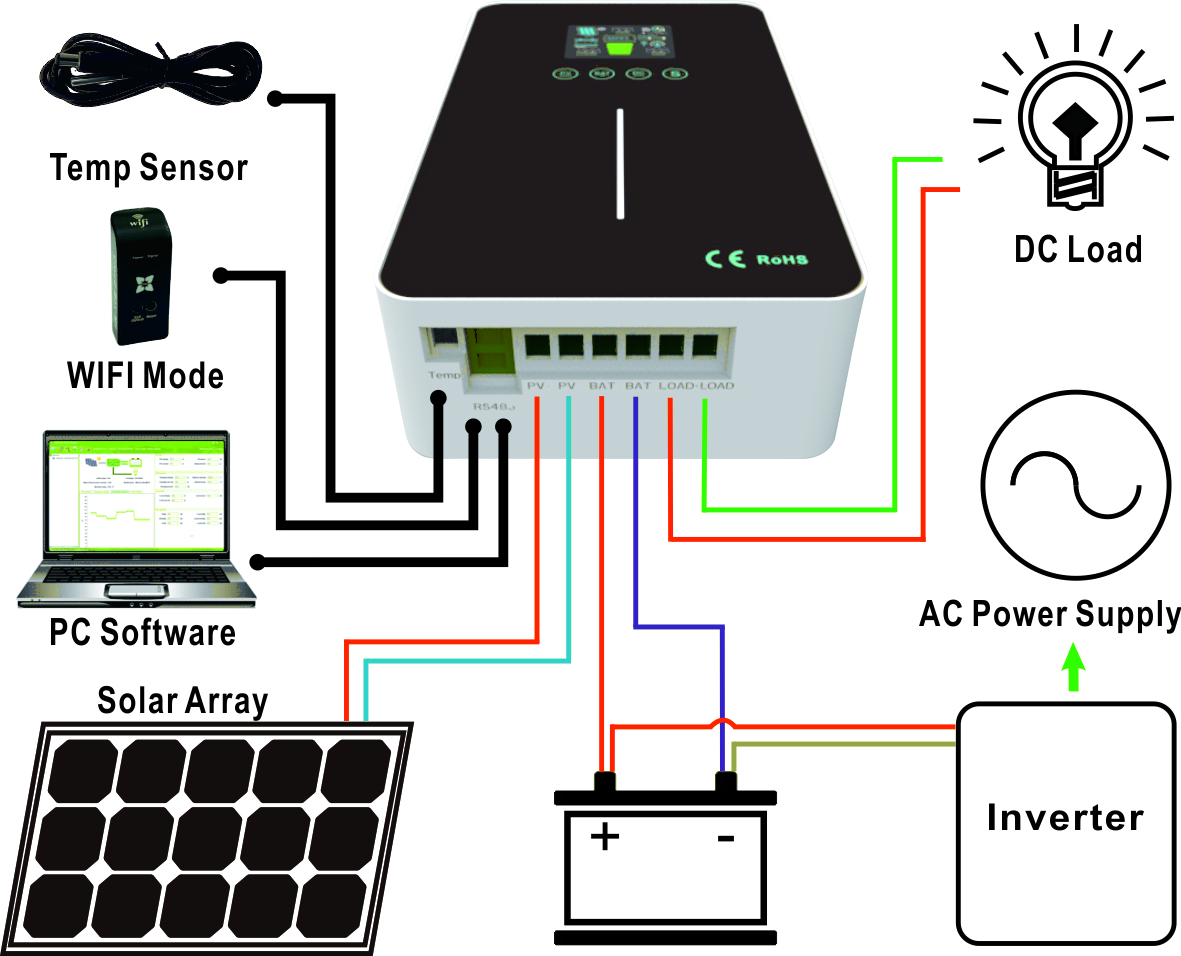

| Communication | Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring |
|||
| Other Parameters |
Protections | Input over / low voltage, output over / low voltage, reverse connection, over temperature, short circuit, battery shedding etc. |
||
| Operating ambient temperature | -20℃~+50℃ | |||
| Storage temperature | -40℃~+75℃ | |||
| IP(Ingress protection) | IP21 | |||
| Max. Battery wire (mm2/AWG) | 30mm2 | |||
| Max. Load wire (mm2/AWG) | 30mm2 | |||
| Recommended breaker | ≥100A | |||
| Net weight (KG)/Gross weight (KG) | 2.15 / 3.05 | |||
| Product size (mm)/Packing size (mm) | 305×185×72 / 420×275×150 | |||
