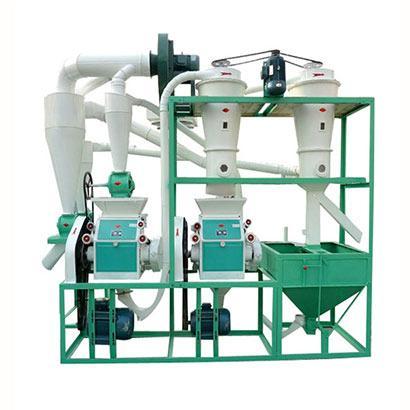

Duplex coarse cereal milling machine is mainly used in small size of coarse grain flour processing plants. It has the features of complete function, low noise, no dust, high degree of automation, convenient installation and low production cost. It grinds wheat into flour by the grinding roll of the grinder. Then the flour is winnowed and screened by the circular screen. At last, we package the flour and the bran separately.

Working principle and features:
The moisture content of the unprocessed grains should be 13.5～14.5%. Start the blower and then start the grinder. When the blower and the grinder are both started, the workbin can be blanking. When the grinding head stock bin has material, then we operate by the order of the combined grinding brake. When we shut down the machine, we should shut down the grinder first, then the blower. Flour milling process should be repeated. We can adjust the roll clearance three to four times successively until it reaches the flour yield. It can adjust the flow by adjusting the clearance between the flow plate and the feeding roll. Rotating the hand wheel screw can adjust the flow.
High automation degree, reasonable structure, stable running, reliable features, low energy consumption, high efficiency, low production cost, good benefit, low noise, no dust, safety and sanitation, energy conservation and environmental protection, easy installation and convenient maintenance.

Technical parameter:

Model	Yield	Roller Specification（mm）	Fast Roller Speed（r/min）	Power	Weight	Outline Size
Model	（kg/h）	Roller Specification（mm）	Fast Roller Speed（r/min）	(kw)	（kg）	(mm)
NF-2235	400-500	Ф220×350	650	15+3	1100	4000x1300x4200
NF-2240	500-550	Ф220×400	650	22+3	1250	4000x1500x4200
NF-2250	600-650	Ф220×500	650	30+3	1400	4000x1800x4200
