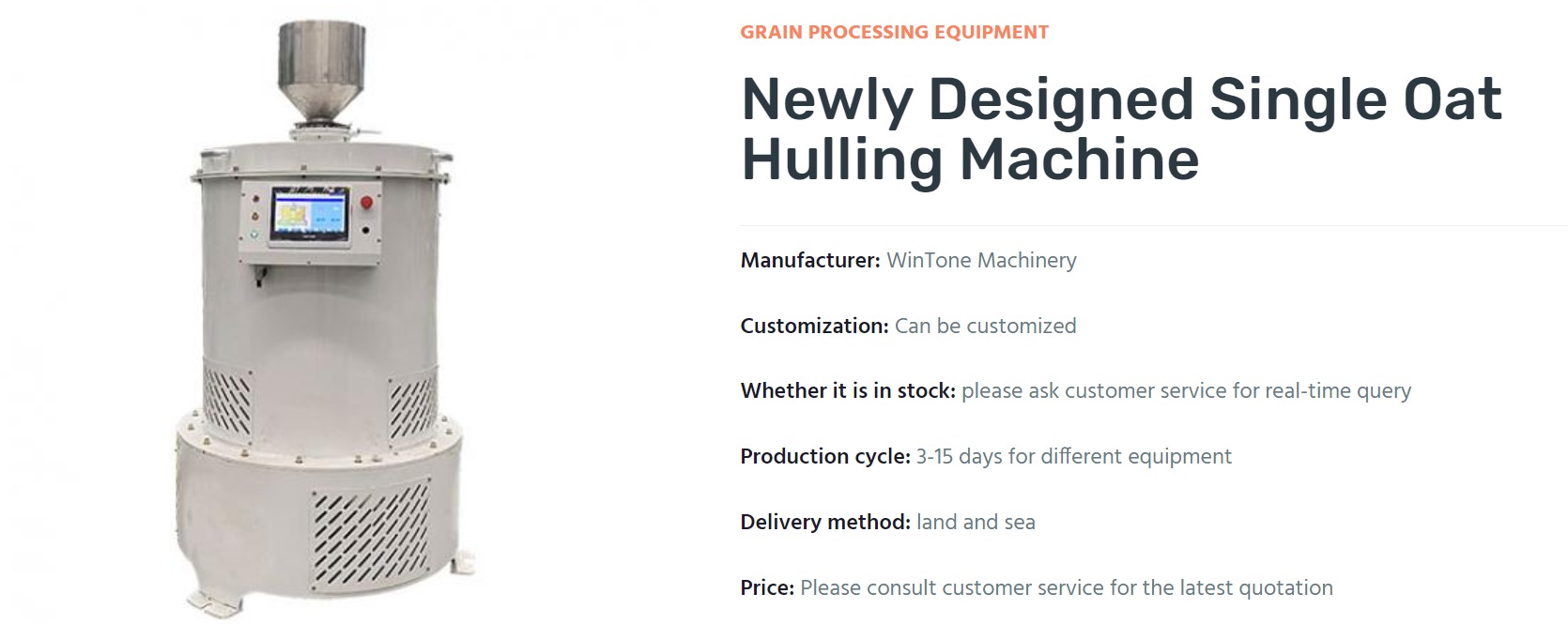

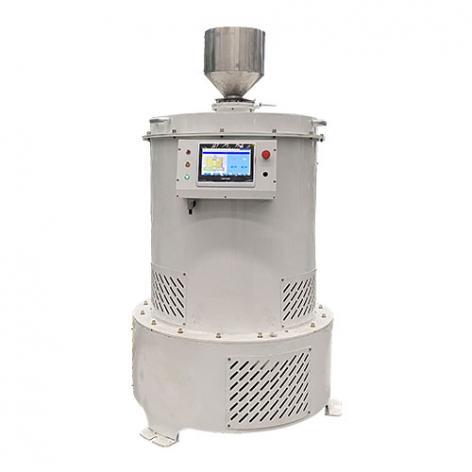

MTPS-25YM Single Oat Hulling Machine
Features:
Axial inlet air design with strong air draft system, low temperature, good bran discharging capability.
Toothed gear drive device for control of inlet plugboard, convenient and precise operation.
Outlet is equipped with cleaning device for further decreasing the temperature
and cleaning the material.
Special motor rack, compact structure, small dimension, easy adjustment, convenient maintenance.
Air pressure monitor device to control negative pressure at a stable level in the machine.
Single Oat Hulling Machine is mainly used for oat hulling in the oat processing factory.
MTPS-25YM single oat hulling machine technical parameter:
|
Model |
Emery Roll Diameter (mm) |
Emery Roll Length (mm) |
Spindle Speed （r/min） |
Yield （t/h） |
Power （kW） |
Air Volume （m³/h） |
Size (L*W*H) (mm) |
|
MTPS-25YM |
φ246 |
690 |
800 |
2～3 |
11/15 （6级- Grade 6） |
2200-2500 |
1450×800×1940 |
