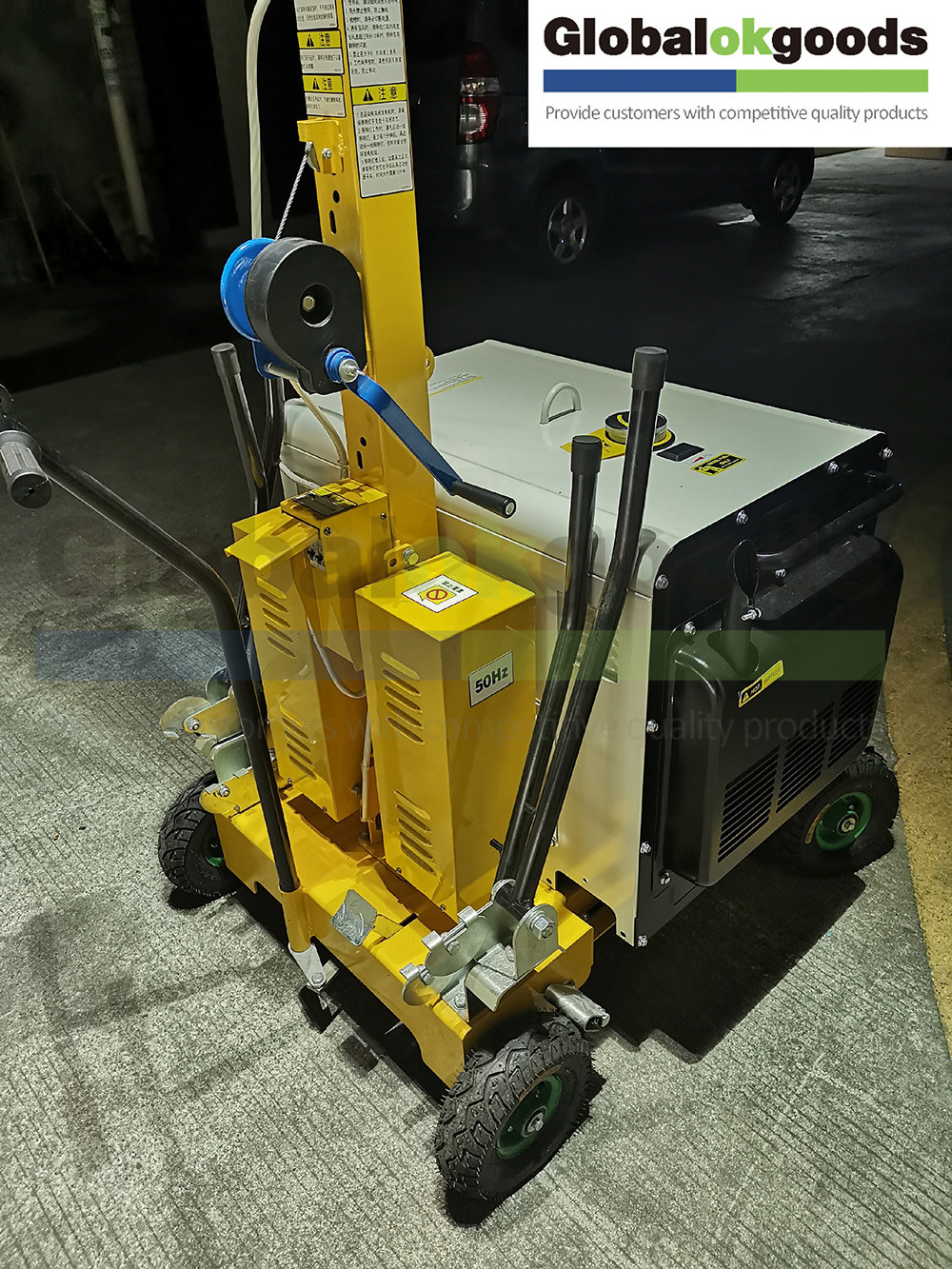

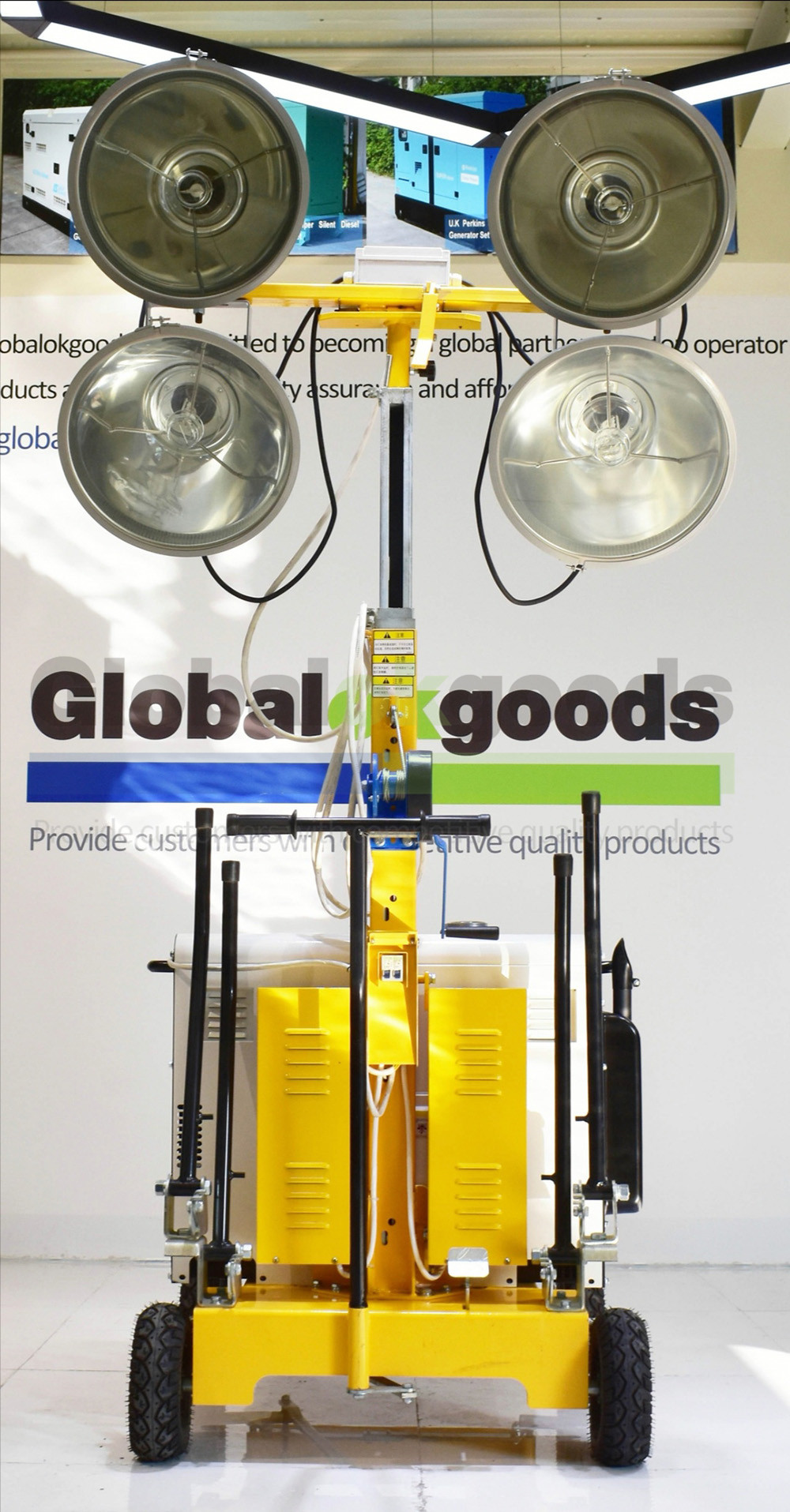

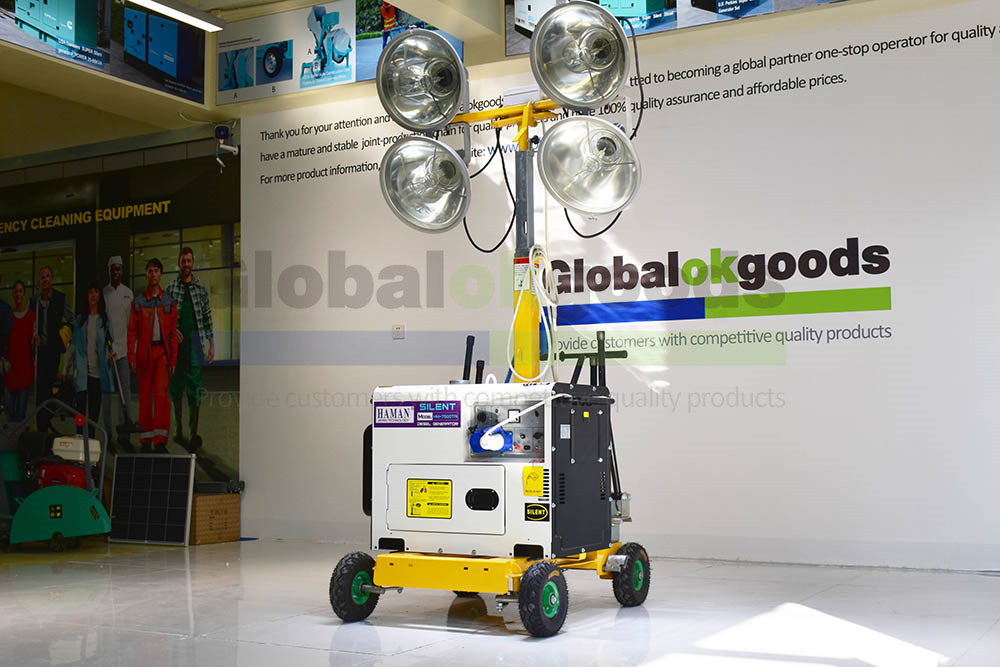

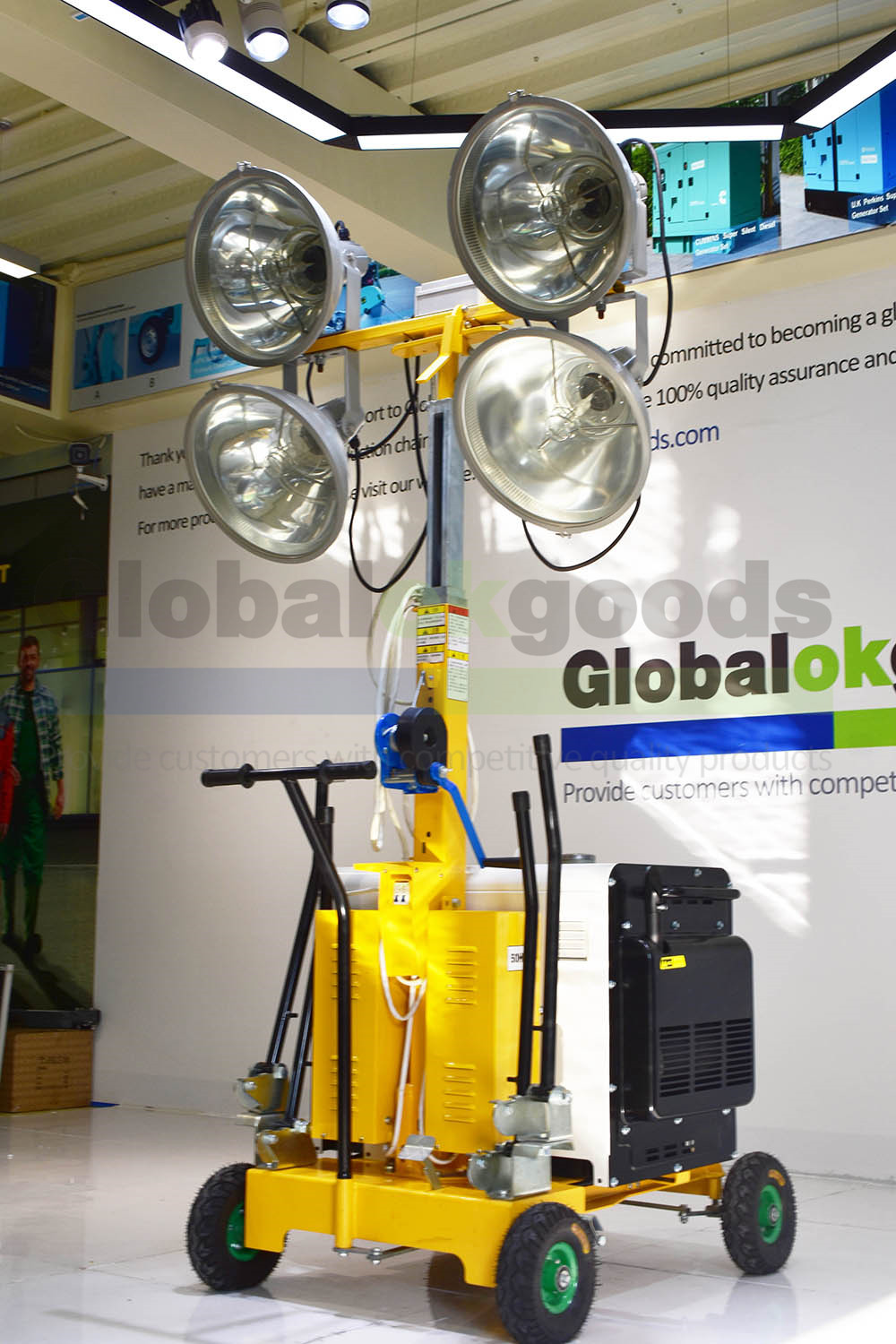

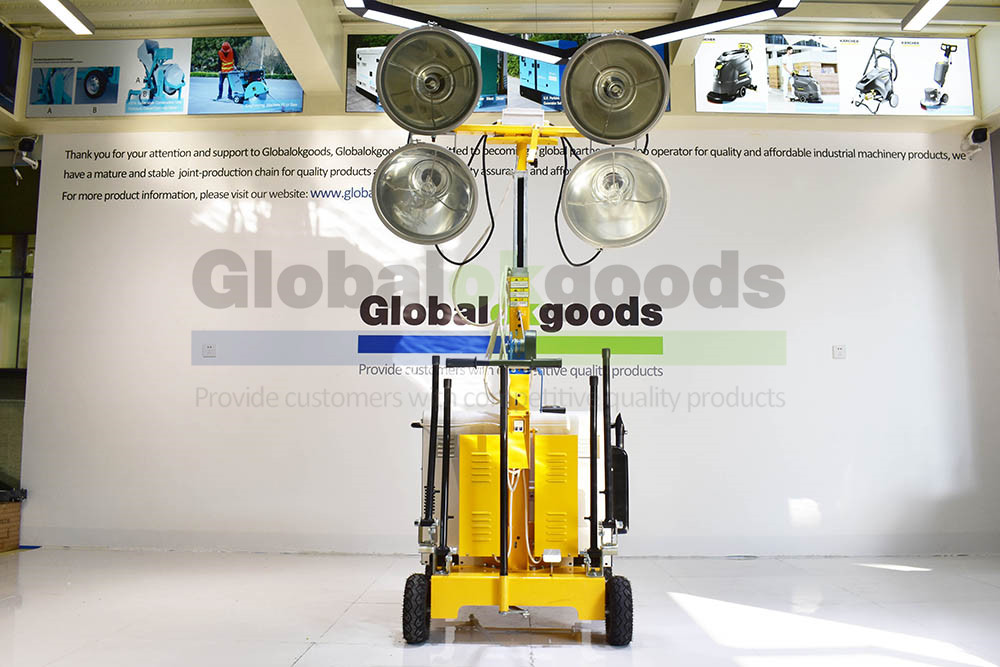

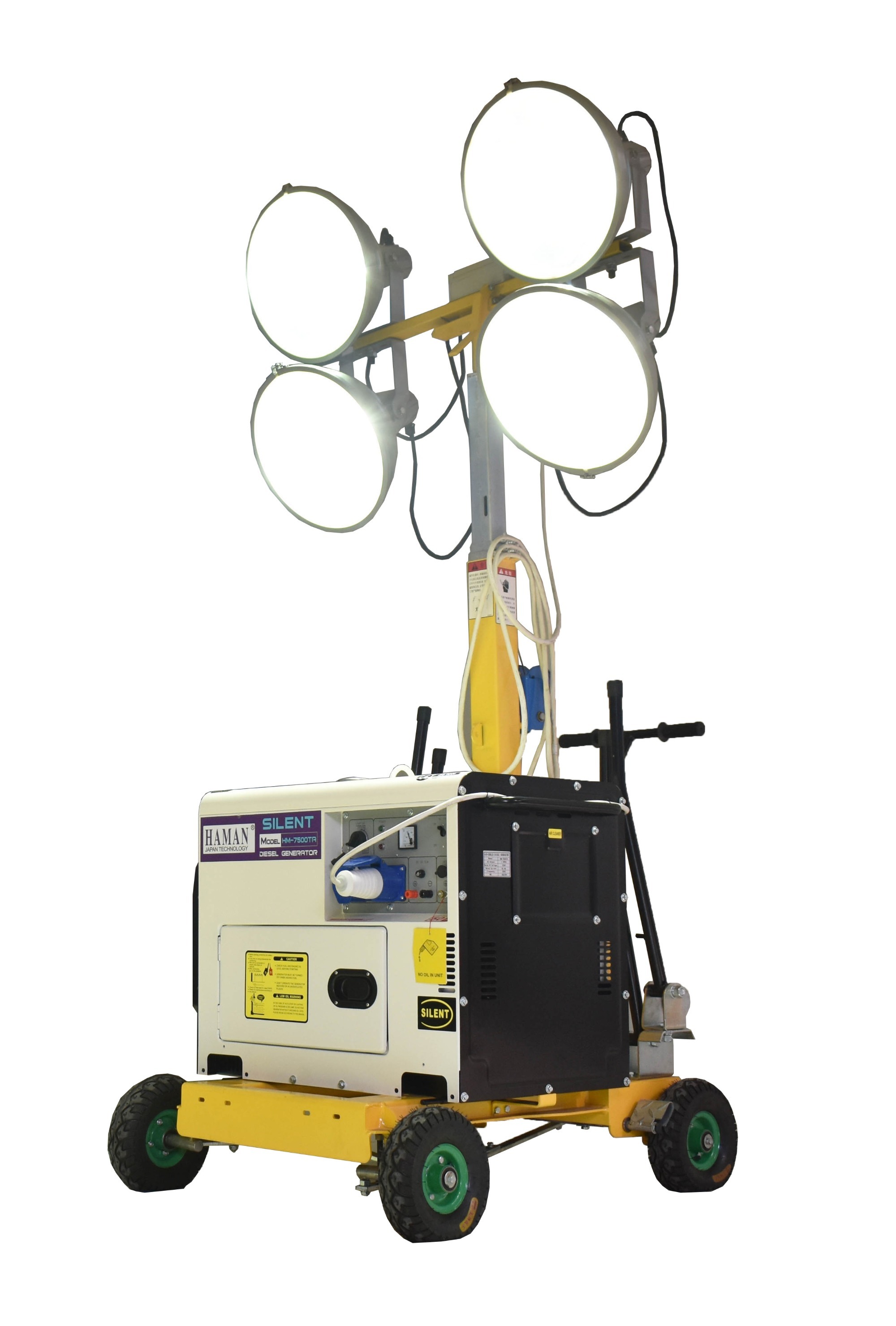

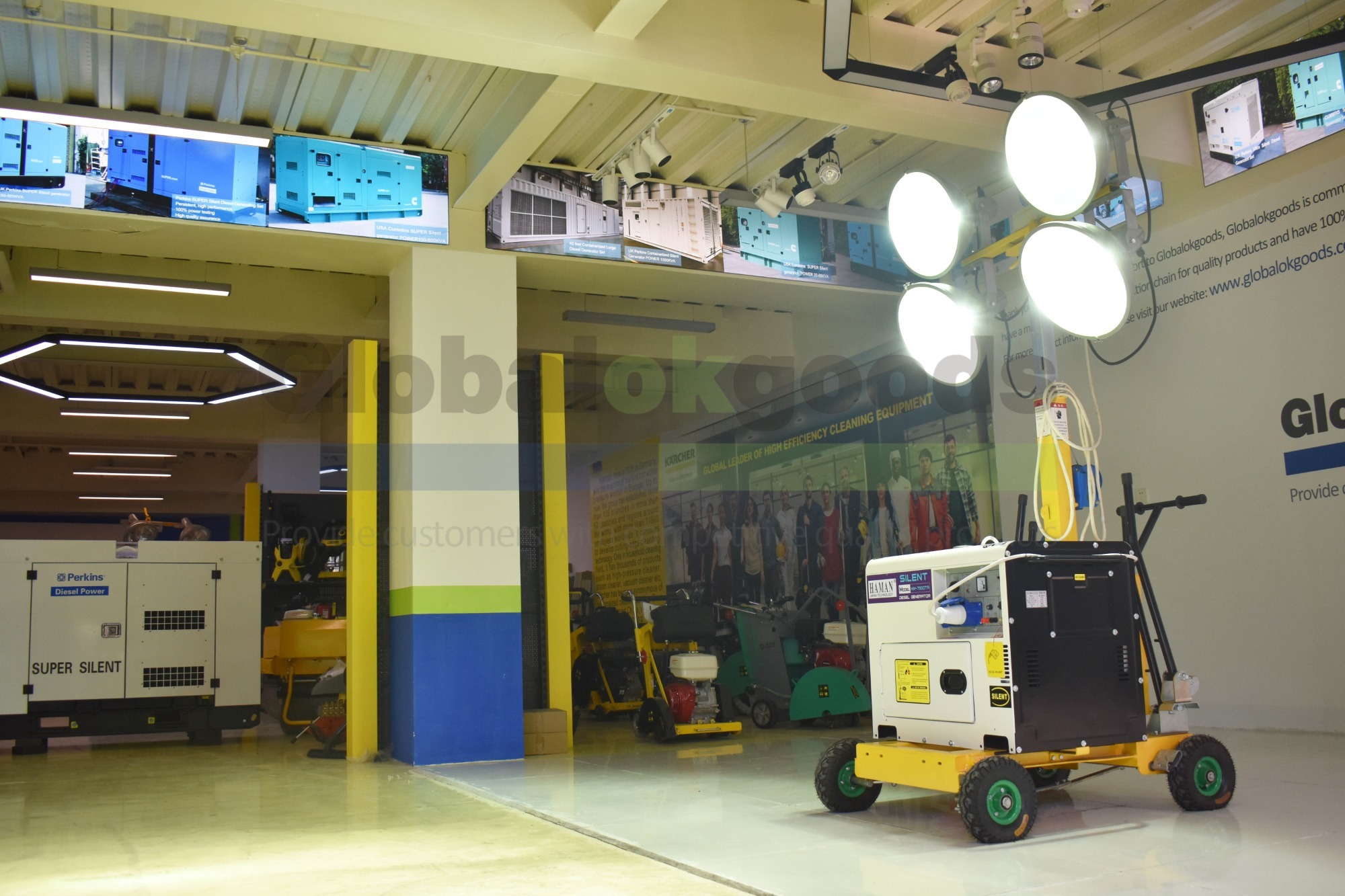

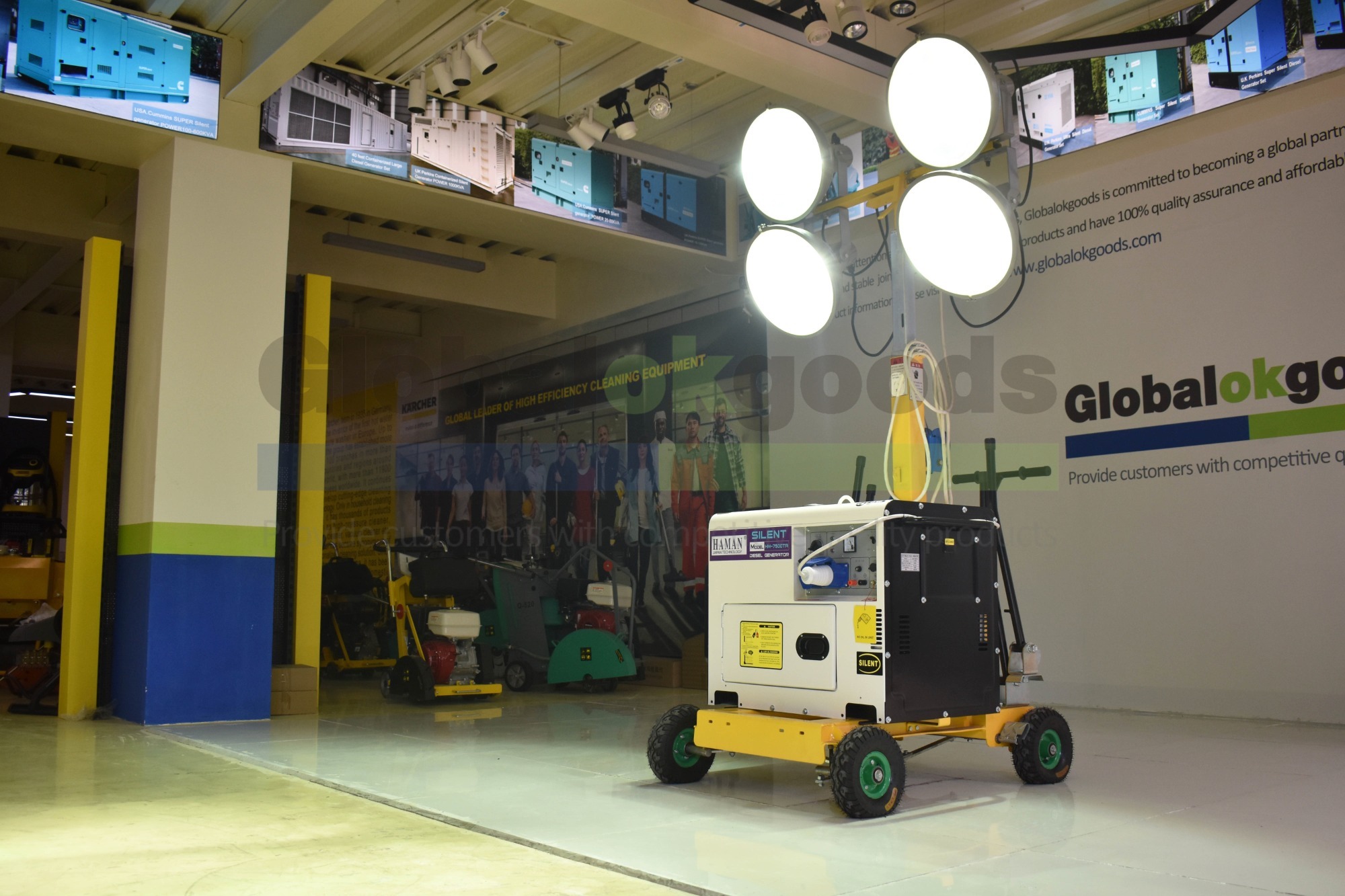

Mobile Portable Silent Diesel Light Tower, equipped with high-quality HAMAN POWER: 7.5KVA diesel silent generator

SKU:
0.0 (0)
0 Sold
$0.00 $2,999.00

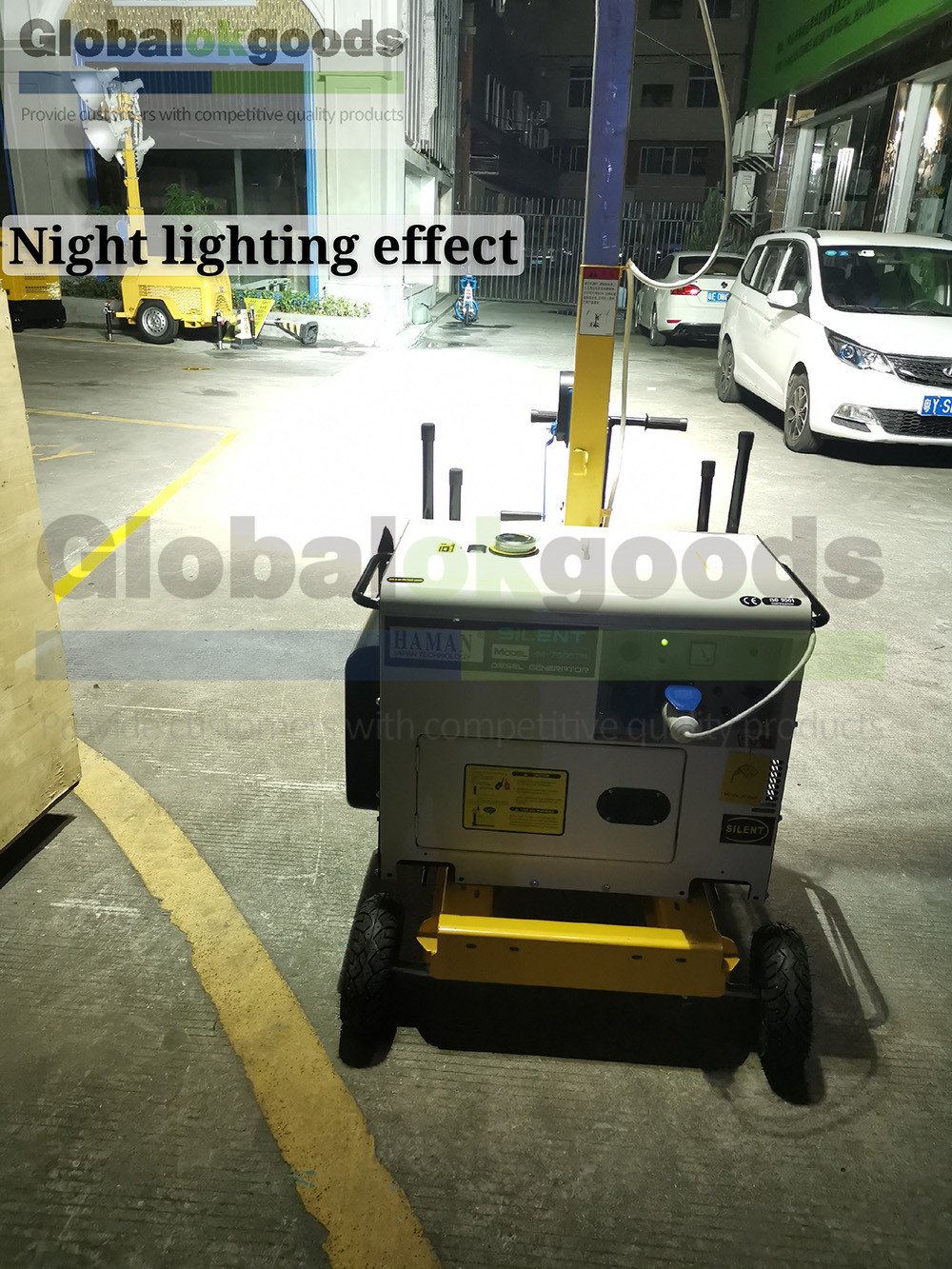

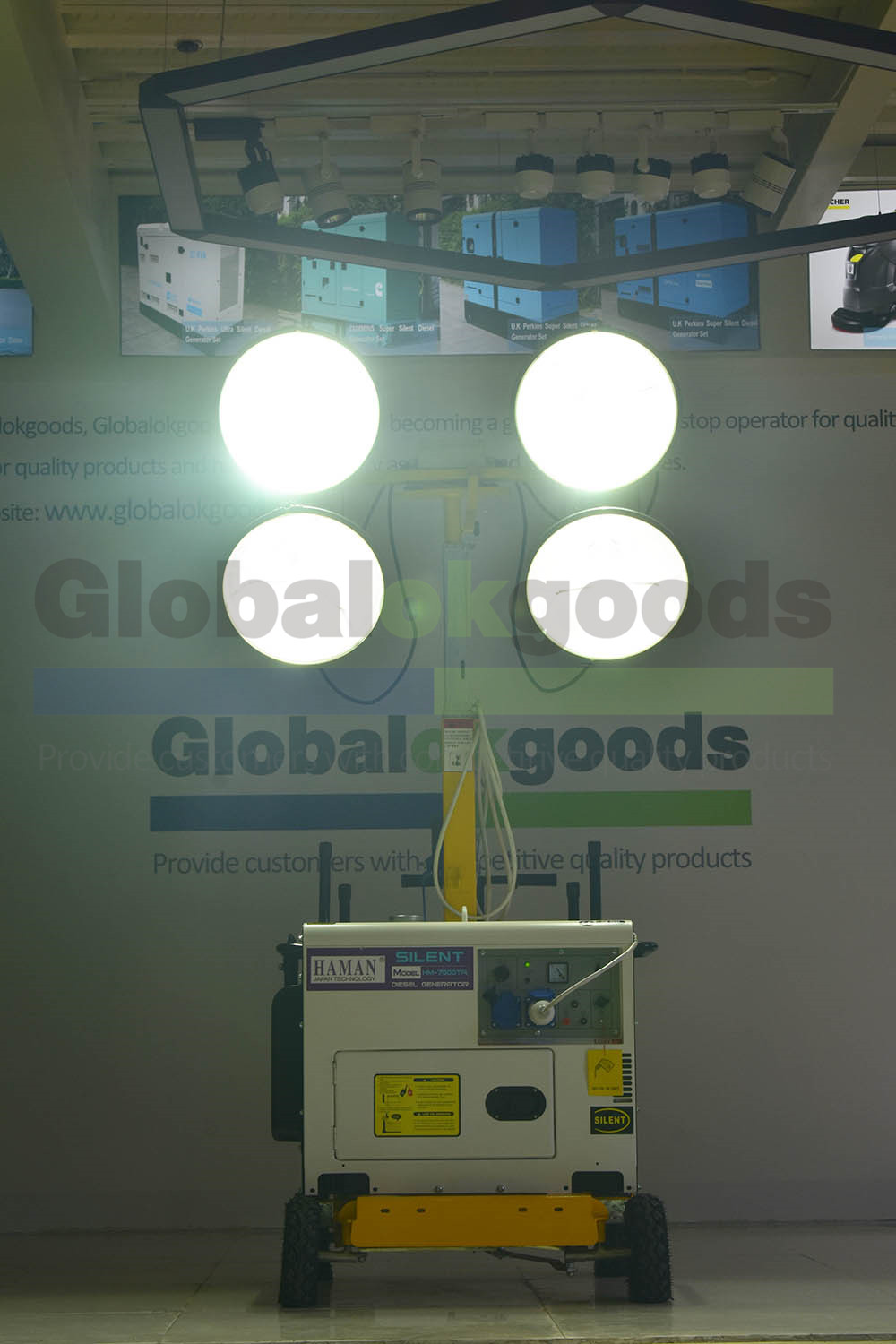

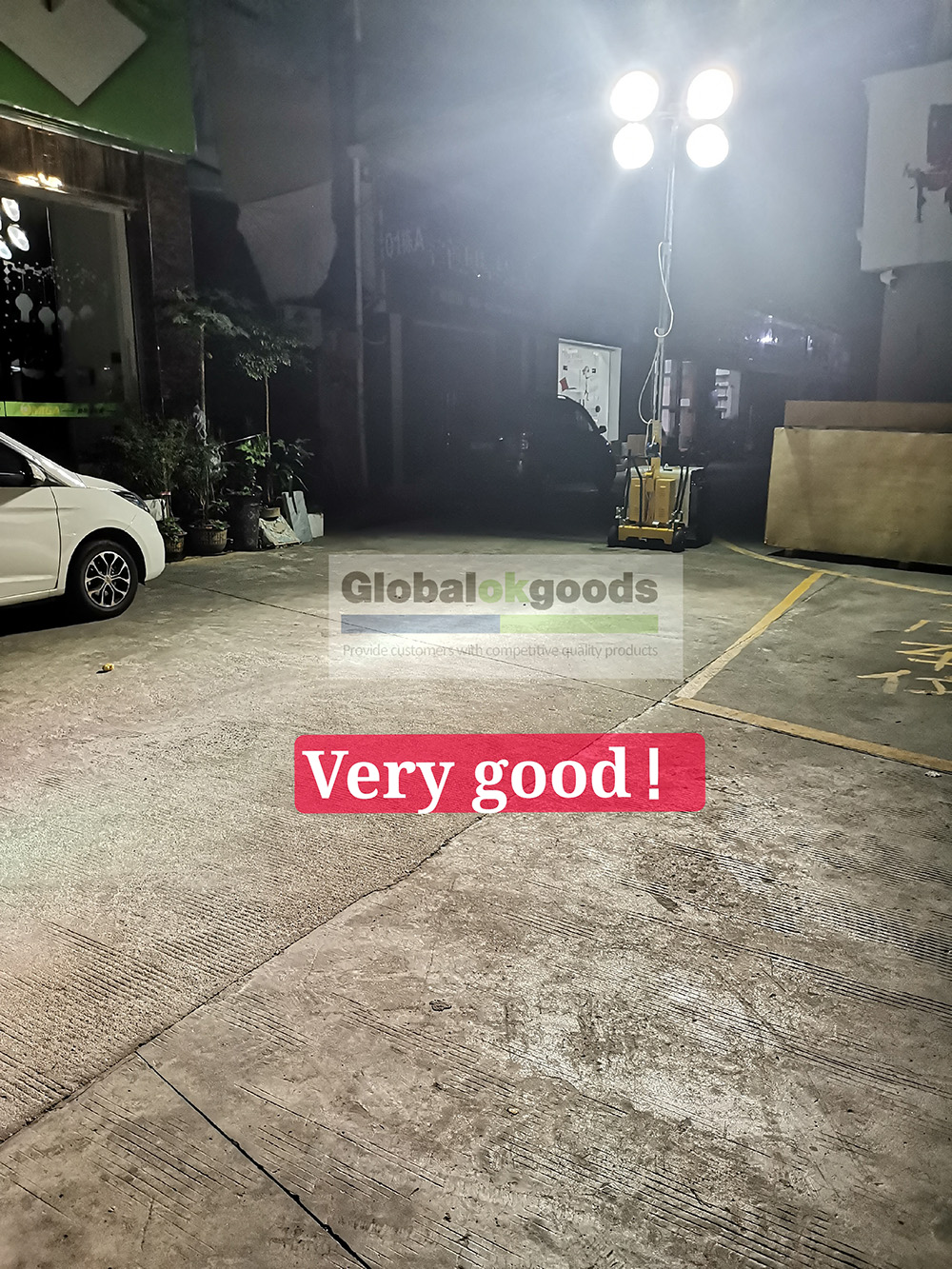

Lamp height can be up to 4.6m. 4x400W high-brightness metal halide lamp,360° illumination angle. Total power of the lamp is 2KVA, the remaining 6KVA power is enough to supply other construction equipment. It is super economical and practical!
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • Mobile Portable Silent Diesel Light Tower, equipped with high-quality HAMAN POWER: 7.5KVA diesel silent generator
  • Mobile Portable Silent Diesel Light Tower, equipped with high-quality HAMAN POWER: 7.5KVA diesel silent generator
  • Mobile Portable Silent Diesel Light Tower, equipped with high-quality HAMAN POWER: 7.5KVA diesel silent generator
  • Mobile Portable Silent Diesel Light Tower, equipped with high-quality HAMAN POWER: 7.5KVA diesel silent generator
  • Mobile Portable Silent Diesel Light Tower, equipped with high-quality HAMAN POWER: 7.5KVA diesel silent generator
  • Mobile Portable Silent Diesel Light Tower, equipped with high-quality HAMAN POWER: 7.5KVA diesel silent generator
1/1
  • Mobile Portable Silent Diesel Light Tower, equipped with high-quality HAMAN POWER: 7.5KVA diesel silent generator
  • Mobile Portable Silent Diesel Light Tower, equipped with high-quality HAMAN POWER: 7.5KVA diesel silent generator
  • Mobile Portable Silent Diesel Light Tower, equipped with high-quality HAMAN POWER: 7.5KVA diesel silent generator
  • Description
Product Specification
 Performance Data
Model HAMAN 7500TA/4.6M
Rated Output (KVA) 7
Max.Output (KVA) 7.5
Rated Voltage (V) 230
Rated Current (A) 21
Rated Speed (r/min) 3000
Alternator
Alternator Brand Mecc Alte

Alternator Model

HAMAN-7500TA

Pole No.

4
Engine HAMAN
Engine model HAMAN1920
Aspiration Natural
Bore x Stroke (mm) 92×75
Displacement (L) 0.898
Rated Power (KW) 6.6
Lubrication System Pressure Splash
Lube Oil Above CF or SAE 10W-30, 15W-40
Starting System 12V electric starter
Battery  12V36Ah x1
Fuel  0#(summer),-10#(winter),-35#(chill) diesel
Mast
Type Hydraulic
Sections 9
Ratation 359°
Double Safety Block Standard
Lights
Number & Power of the lights 4*400W
Lights Type Metal Halide
Light angle turning Manual
Genset
Control Panel Digital Control Panel
Lifting Button Standard
Output (V) 230
Auxiliary Sockets Standard
Traction kit Standard
Reflectors Standard
Wheels 2
Stabilisers 4
Noise Level (7m)dB(A) 75
Fuel Tank Capacity (L) 25
Continuous Running Time(h) 12
Highest point of equipment(m) 4.6
Min.Dimensions in operation (mm) 1200x1100x2000
Max.Dimensions in operation (mm) 1200x1100x4600
Net Weight (Kg) 395
