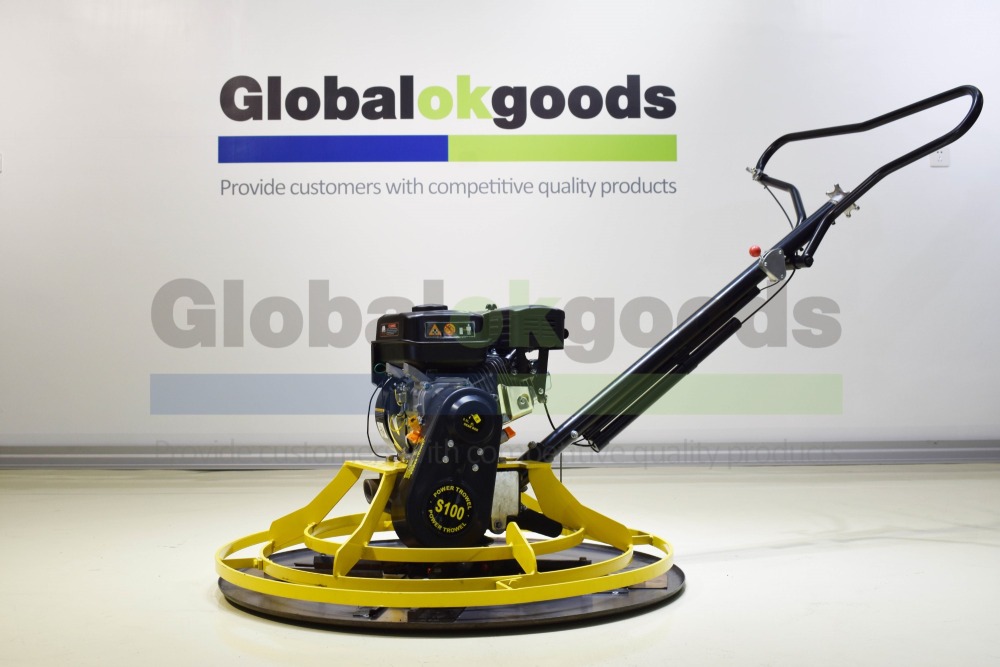

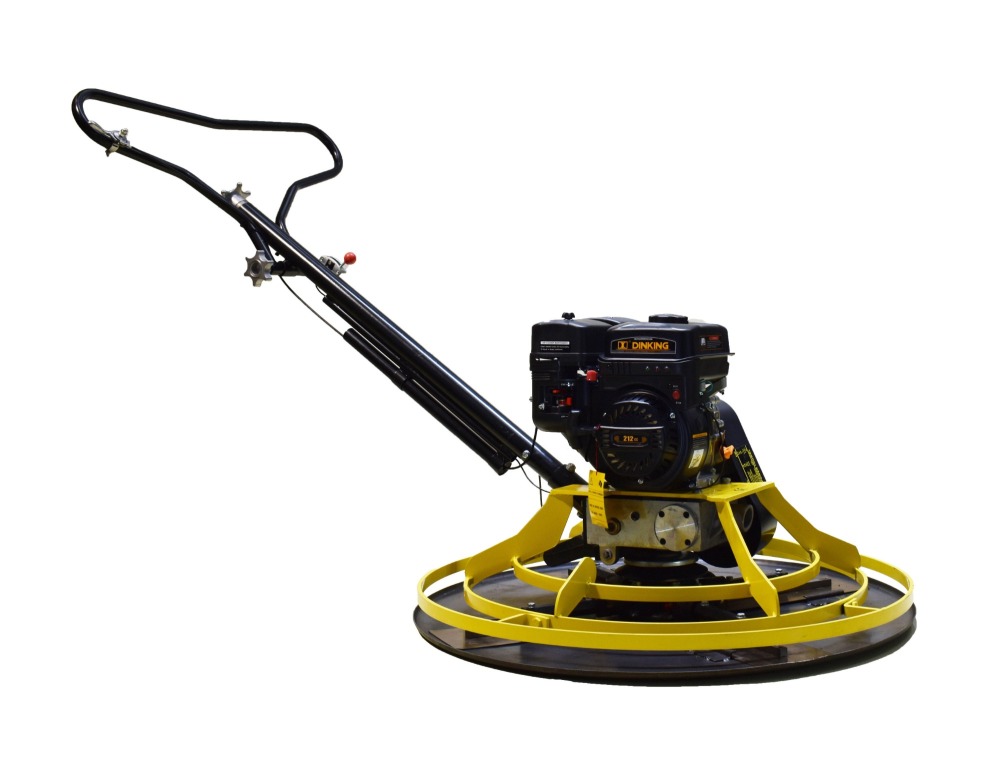

High-quality Power Trowel, Gasoline Engine, Power: 7HP, Trowel diameter: 100cm

0.0 (0)

0 Sold

$0.00 ~~$480.00~~

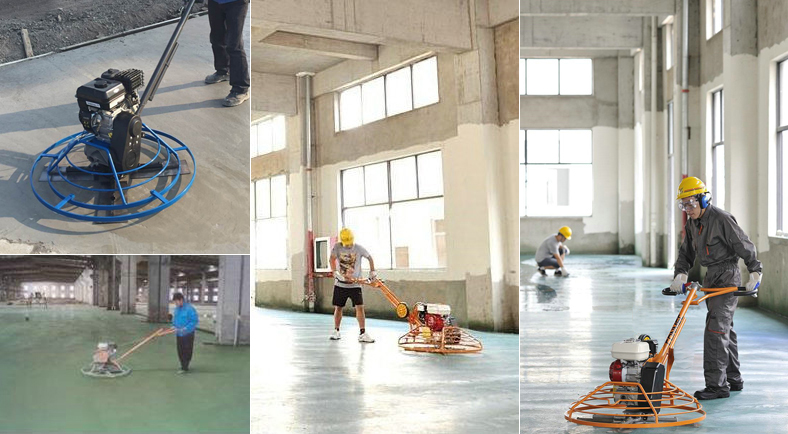

It is widely used in: Construction projects, Buildings, Road construction work etc...

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

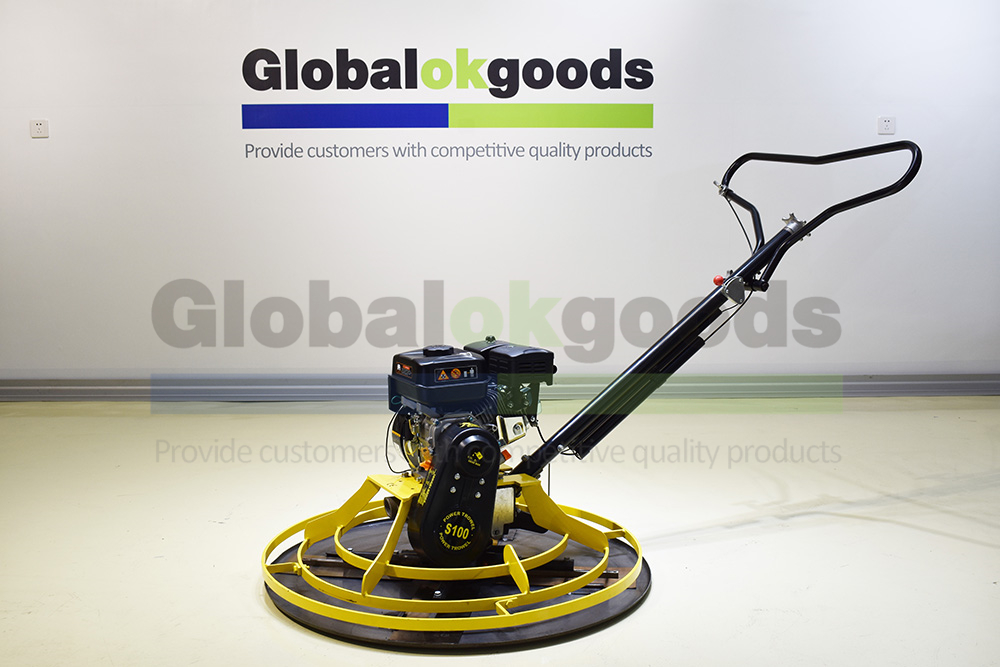

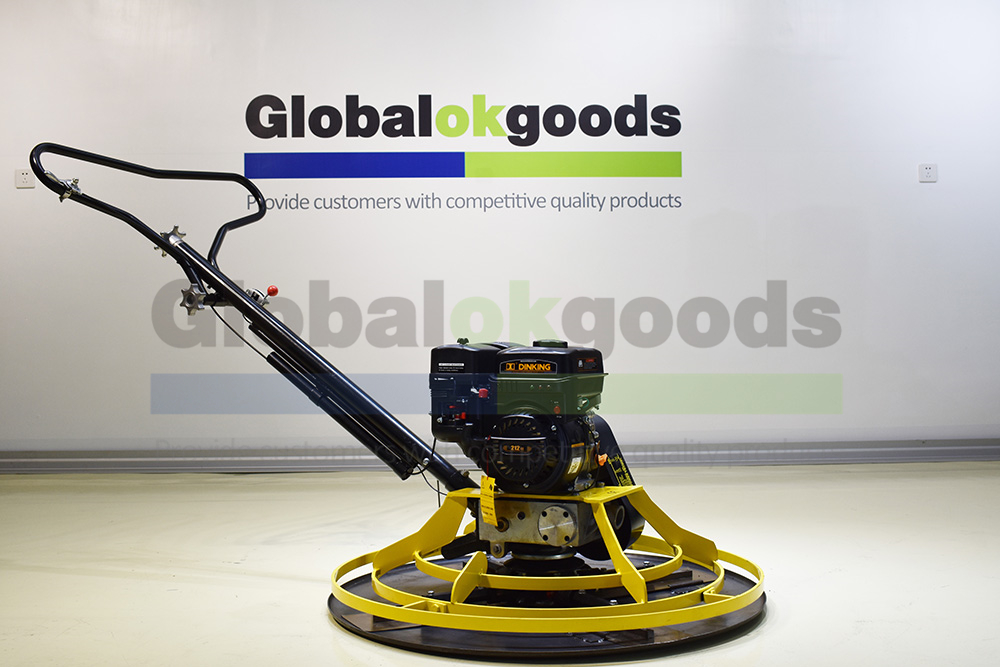

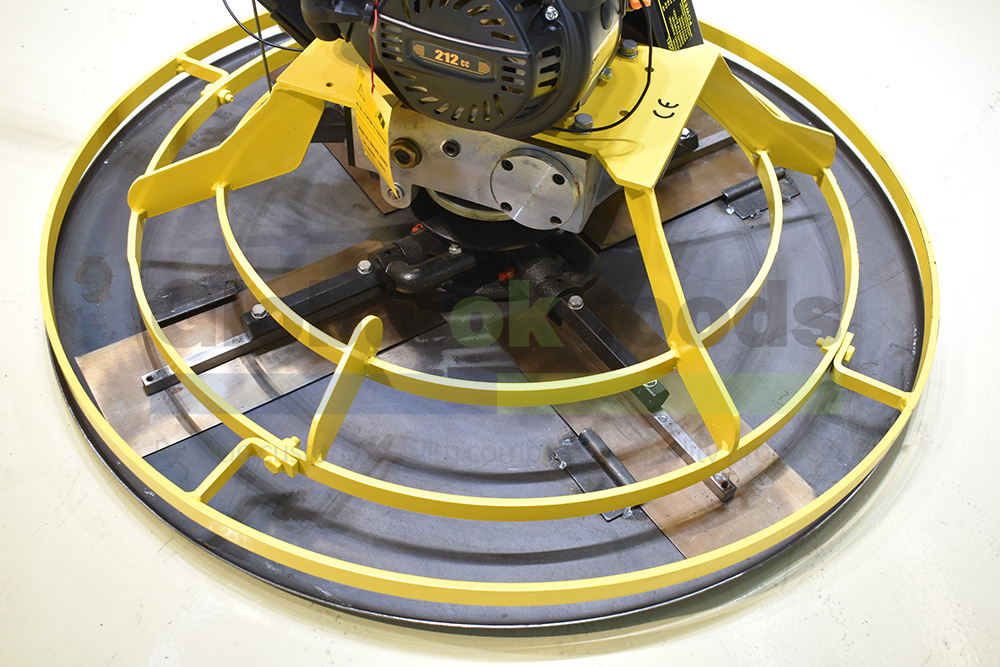

Power trowel is a construction machine used to impart a smooth surface finish on freshly poured concrete slabs. This machine consists of one rotor which rotate parallel with the slab surface.
Discs or multi-bladed attachments are spun against the still soft concrete surface by the rotors, thereby effectively smoothing out any blemishes or high spots.

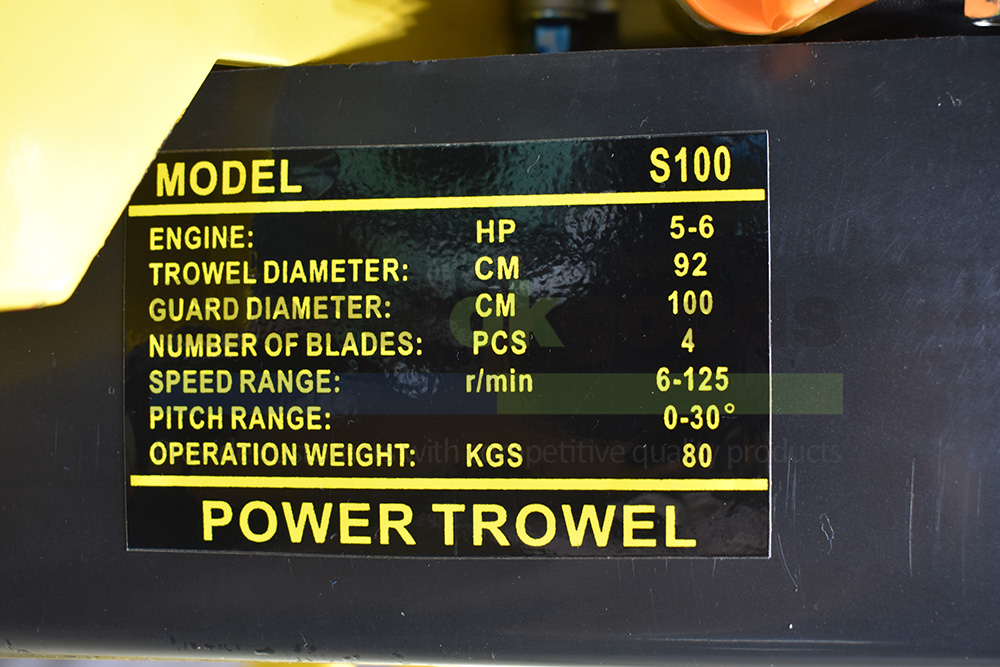

Technical Data

Model	WH-S100H	WH-S100R	WH-S100L	WH-S100S

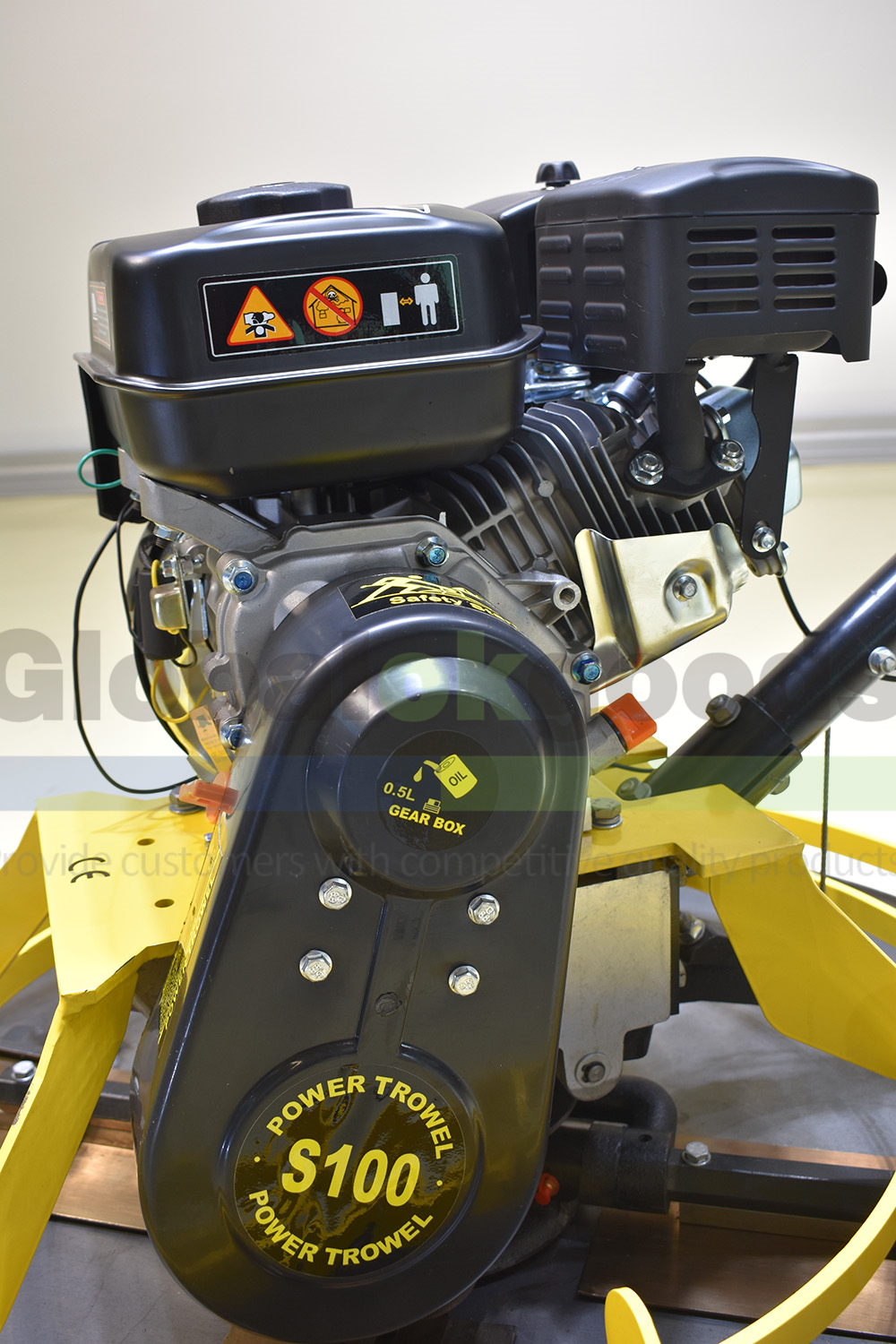

Engine	Honda GX160	Robin EY20	Loncin G200F	B&S1062
Engine type	Air-cooled single cylinder 4-stroke
Power (HP)	5.5	5.0	6.5	5.0
Trowel diameter (cm)	92
Speed range (r/min)	60-100
Pitch range	0-15°
Operating weight (kg)	96	96	96	96
Shipping weight (kg)	106	106	106	106
Shipping size (cm)	10010036

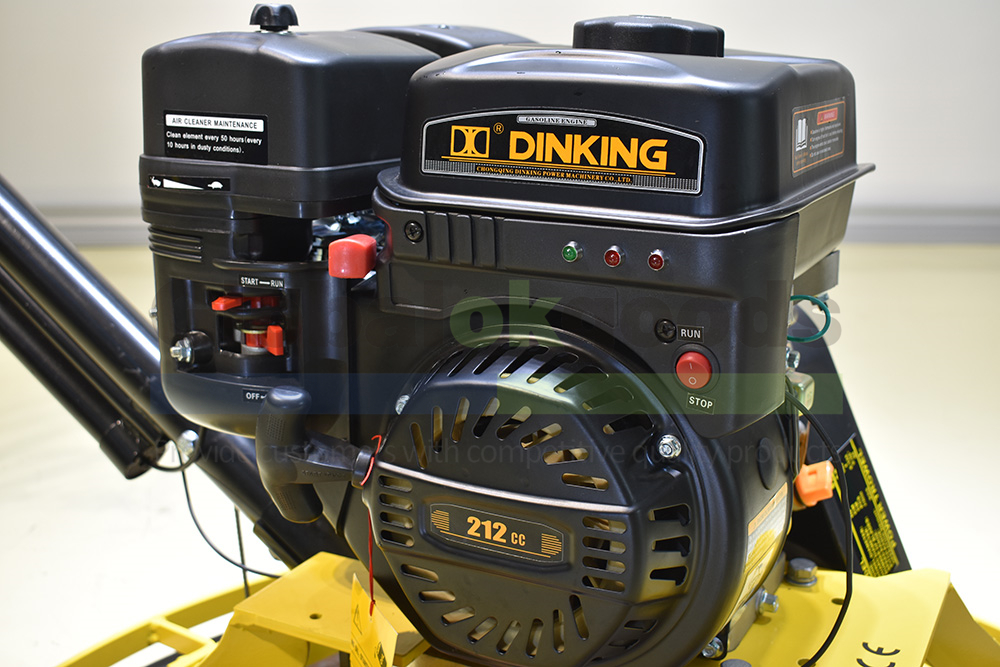

Engine Periodic Maintenance Schedule
Performed at every indicated month or operation hours interval, whichever comes first.		REGULAR SERVICE PERIOD
Item	Directive	Each use	First month or 20 Hrs.	Every 3 months or 50 Hrs.	Every 6 months or 100 Hrs.	Every year or 300 Hrs.
Engine oil	Check level	√
Engine oil	Change		√		√
Air cleaner	Check	√
	Clean			√(1)
	Replace					√＊
Sediment cup	Clean				√
Spark plug	Check-Clean				√
Spark plug	Replace					√
Idle speed	Check-Adjust					√(2)
Valve clearance	Check-Adjust					√(2)
Fuel rank and strainer	Clean					√(2)
Combustion chamber	Clean	After every 300 Hrs. (2)
Fuel line	Check	Every 2 years (Replace if necessary) (2)
＊ Replace the paper element type only.
(1) Service more frequently when used in dusty areas.
(2) These items should be serviced by your servicing dealer unless you have the proper tools and are mechanically proficient. Refer to manual for service procedures.

Power trowel Periodic Maintenance Schedule

Directive	Daily before starting	After first 5 Hrs.	After first 50 Hrs.	Every week or 25 Hrs.	Every month or 100 Hrs.	Every 3 months or 300 Hrs.
Check oil level of machine	√
Check fuel level line and fittings for cracks or leaks	√
Check and tighten engine clylinder screws		√		√
Check and tighten external hardware		√		√
Check V-belt					√
Clean engine cooling fins				√
Clean recoil starter						√
Change gearbox oil			√			√
Clean engine muffler and exhaust port						√
Note: If engine performance is poor, please check, clean and replace air filter elements as needed.
