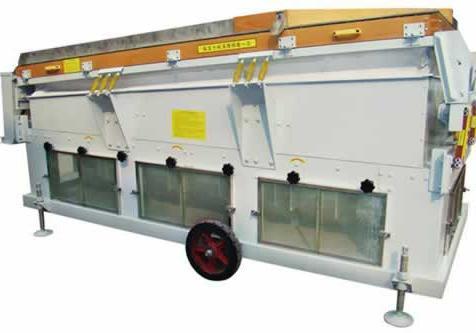

Gravity separator With suspended hood

Introduction
1.This Blow Type Specific Gravity Cleaning Machine is to produce proportion segregation phenomenon under stress of aerodynamic and vibration friction of graininess material.

Feature
1.By adjusting wind pressure, amplitude and other parameters, larger and smaller proportion material will be separated.
2.This machine is to remove blighted seed, budding seed, damaged seed (by insect), and other light impurities from wheat, corn, paddy, sunflower seed, melon seed, legume, etc.
3.At the same time, there is an angle on the right of vibration surface; the stone can be separated.

Specification

Model	Sieve size(mm)	Capacity	Weight	Overall Size
Model	Sieve size(mm)	t/h	T	L×W×H (mm)
5XZ-6	1380x3150	6	1.55	3870x1720x1700

5XZ-8 Gravity separator

Introduction
5XZ-8 gravity separator is developed under the basis of 5XZ-6 gravity separator. This machine maily add the grain outlet function of gravity table to improve the selection ability, Especially fit for wheat, corn and grain.

Feature
Easily controlled of air flow due to the clapbord of the wind box; bigger capacity

Specification

Model	Sieve size(mm)	Capacity	Weight	Overall Size
Model	Sieve size(mm)	t/h	T	L×W×H (mm)
5XZ-8	1380x3150	8	1.68	3870x2000x1700
